10kV indoor current transformer

This type of voltage transformer uses epoxy casting insulation and is suitable for 10kV indoor 50Hz or 60Hz AC power systems.

Classification :

Indoor Transformer

+8619189647857

taikaidldq@gmail.com

PRODUCT DETAILS

This type of voltage transformer uses epoxy casting insulation and is suitable for 10kV indoor 50Hz or 60Hz AC power systems. Based on the principle of electromagnetic induction, it converts the primary side high voltage into standard low voltages such as 100V, 100/√3V, 100/3V on the secondary side according to a specific transformation ratio, providing adaptive voltage signals for measuring instruments, relay protection devices and automatic control equipment, and realizing accurate measurement, fault protection and automatic regulation of power system voltage. The transformer has excellent insulation performance, high mechanical strength, excellent moisture resistance, fire resistance, dust resistance and corrosion resistance, compact structure, small size, light weight, easy installation and maintenance, and is often used in indoor substations, switch cabinets and other places. It plays an important role in ensuring the safe and stable operation of power systems.

Type	Rated voltage ratio(kV)	Accuracy class	Rated secondary output(VA)	Limit the output(VA)	Rated insulation level(kV)
JDZQN-10	6/0.1	0.2 0.5	20 50	400	7.2/30/60
	10/0.1	0.2 0.5	20 50	400	12/42/75
	6/0.1/0.1	0.2/0.2 0.2/0.5 0.5/0.5	15/15	300	7.2/30/60
	10/0.1/0.1	0.2/0.2 0.2/0.5 0.5/0.5	15/15	300	12/42/75
JDZX9-10	10/√3/0.1/√3/0.1/3	0.2/3P	20/100	400	12/42/75
	10/√3/0.1/√3/0.1/3	0.5/3P	50/100	400
	10/√3/0.1/√3/0.1/√3/0.1/3	0.5/0.5/3P	15/15/50	500
	10/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.5/3P	10/10/50	500
JDZ9-10a	6/0.1	0.2	40	400	7.2/32/60
JDZ9-10a	6/0.1	0.5	100	400	7.2/32/60
JDZ9-10a	10/0.1	0.2	40	400	12/42/75
JDZ9-10a	10/0.1	0.5	100	400	12/42/75
JDZ9-10a	10/0.1/0.1	0.2/0.5	20/30	300	12/42/75
	10/0.22	3	800	/
	10/0.1/0.22	0.2/3	30/500	/
JD79-10a	6/√3/0.1/√3/0.1/3	0.5/3P	50/50	400	7.2/32/60
	6/√3/0.1/√3/0.1/3	0.2/3P	20/50	400	7.2/32/60
	10/√3/0.1/√3/0.1/3	0.5/3P	50/50	400	12/42/75
	10/√3/0.1/√3/0.1/√3/0.1/3	0.5/0.5/3P	30/30/50	500	12/42/75
JDZ9-10G2	6/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.5/3P	30/30/100	400	7.2/32/60
	10/√3/0.1/√3/0.1/3	0.2/3P	40/100	400	12/42/75
	10/√3/0.1/√3/0.1/3	0.5/3P	100/100	400
	10/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.5/3P	15/20/100	500
JDZ9-10G4	6/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.5/3P	50/50/100	400	7.2/32/60
	10/√3/0.1/√3/0.1/3	0.2/3P	80/150	600	12/42/75
	10/√3/0.1/√3/0.1/3	0.5/3P	150/150	600
	10/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.5/3P	50/50//100	400
	10/√3/0.1/√3/0.1/√3/0.1 /√3/0.1/3	0.2/0.5/0.5/3P	30/40/40/100	400

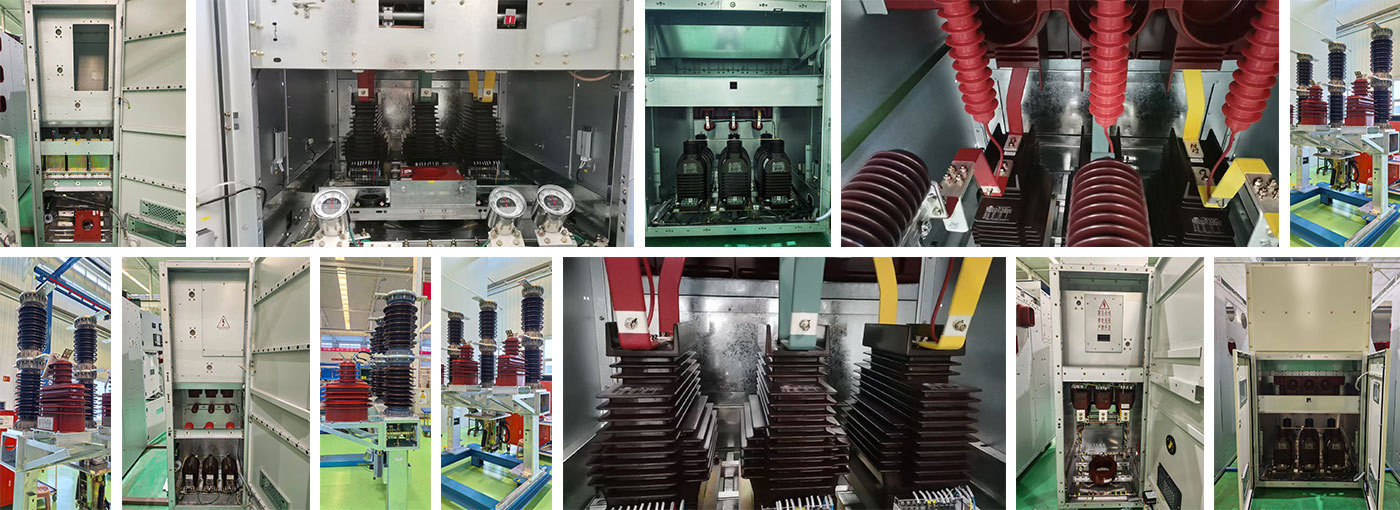

Application
