Applied in power frequency voltage withstand test and partial discharge measurement test in laboratory or substation. High voltage output based on the theory of electromagnetic.

Test objects can be combined apparatus, insulation products, circuit breaker, disconnector instrument transformer and capacitor and other power apparatus.

Parameter

Application description

a.According to the different needs of the field or test, it can be flexibly arranged to facilitate the use of different environments.

b.It can be equipped with outlet casing, or mouth-to-mouth and other solutions for different sample tests.

c.The high pressure can be led to different areas through the pipeline, and the same equipment can be implemented, and multiple samples in multiple areas can   be shared, and the layout is flexible.

d.Different functional modules such as standard voltage transformers and standard capacitors can be combined according to actual needs for different tests.

e.It can be equipped with multi-station isolation switch, single-phase, three-phase transfer switch, etc.; and a variety of sample can

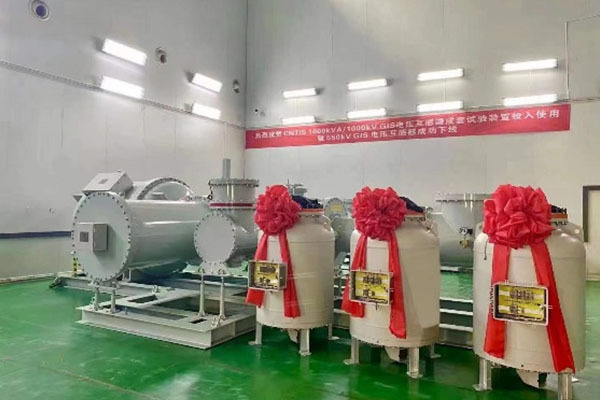

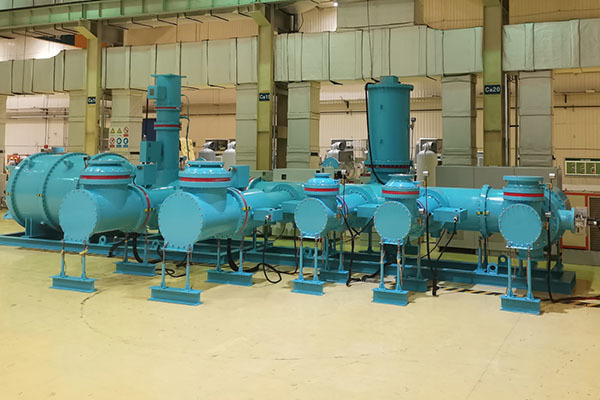

1000kV test transformer	1000kV test transformer	1000kV test transformer

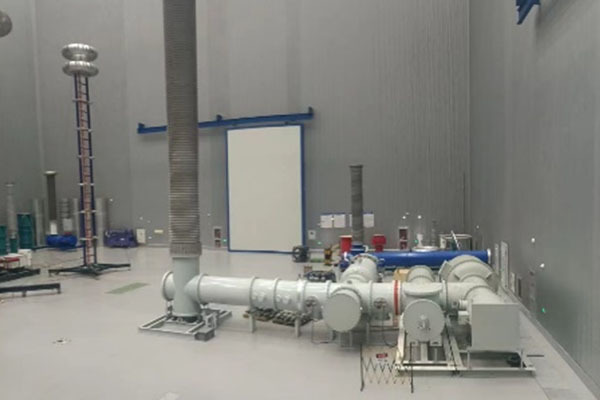

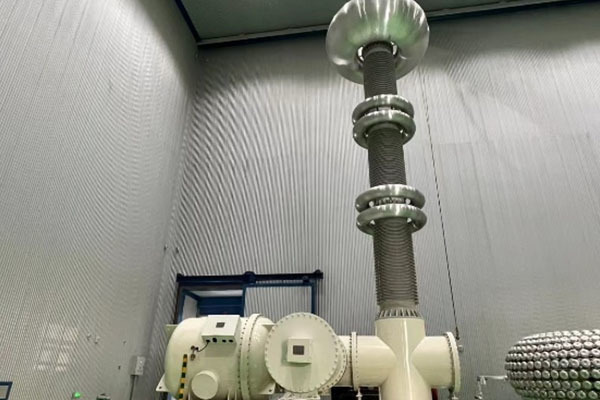

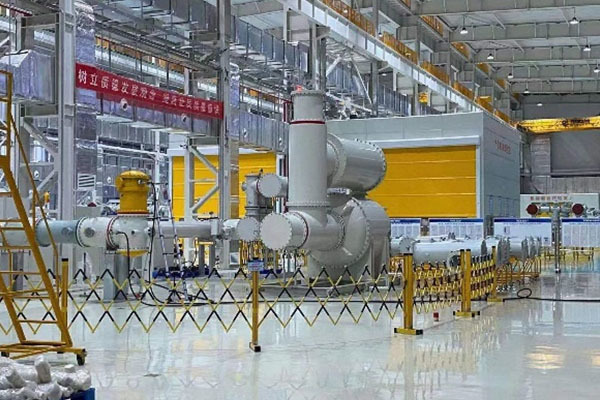

1200kV test transformer	1250kV test transformer	1250kV test transformer

Factory description

Shandong Taikai Testing Co., Ltd.Located at the foot of the world-renowned Mount Tai, Shandong Taikai Testing Co., Ltd. is a wholly-owned subsidiary of Taikai Group, established in 2018 with a registered capital of 50 million yuan.The company boasts a fully shielded test hall with a clear height of 24 meters and a 3,600-square-meter fully enclosed cleanroom workshop. As a comprehensive high-tech enterprise, it integrates:Technical R&D，Equipment Manufacturing，Technical Services，Engineering Commissioning，Testing & Inspection.With a focus on innovation and precision, the company serves as a one-stop solution provider in the field of advanced testing and engineering technologies.

Shandong Taikai Testing Co., Ltd. specializes in the R&D and manufacturing of high-voltage testing equipment, including:AC withstand voltage test systems (10kV ~ 1600kV)，Isolation transformers，Transformer error detection devices，Standard capacitors，Research & teaching platforms

With projects spanning Shandong, Jibei, Fujian, Guangdong, Guangxi, Xinjiang, Shaanxi, Inner Mongolia, and other regions across China

Our solutions have been widely deployed in national key demonstration projects such as:West-to-East Power Transmission，Tibet Grid Interconnection，Zhangbei Flexible DC Grid，Consistently recognized by clients for reliability and innovation in power infrastructure development.

Shipping Packaging

In accordance with national standards and the actual transportation requirements of the Buyer, the complete equipment shall be packed in packaging cases suitable for road transportation. The installation manual, certificate of conformity, packing list, and other documents shall be securely packaged to prevent moisture damage.
