Applied for AC voltage withstand test and partial discharge measurement test in laboratory or substation. High voltage output is based on the theory of series resonance.

Test objects can be GIS/GIL, insulation products, circuit breaker, disconnector instrument transformer , capacitor and other power apparatus.

Parameter

Characteristics

a.Pure sinusoidal waveform，frequency range 20 to 300 Hz.

b.Original internal structure provides less flux leakage, low losses and low noise emission and the quality factor increased.

c.The volume is 30% of the other international brand with less space requirement, high integration and easy to move.

d.In case of failure, only minimal damage may occur due to the limited amount of energy stored in the test circuit.

Application scenarios

e.Peer-to-peer use in factories or laboratories.

f.Hydropower station indoor GIS mouth-to-mouth use.

g.Use in factory or test room for tubing.

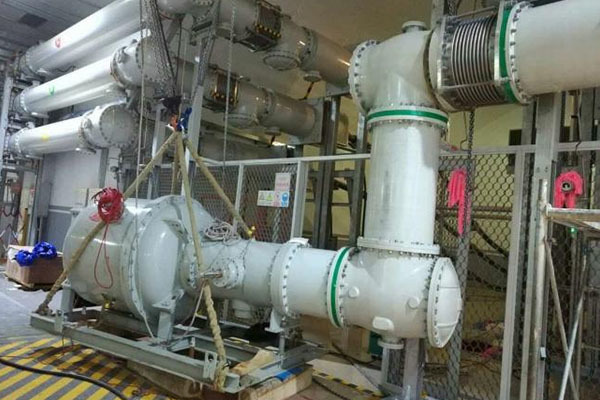

GIS on-site voltage withstand test for underground power plant 550kV

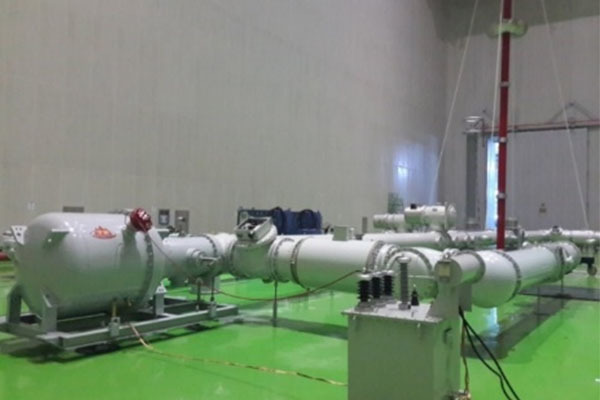

GIS on-site voltage withstand test in factory or laboratory

800kV SF6 gas insulated resonant reactor，GIS on-site voltage withstand test

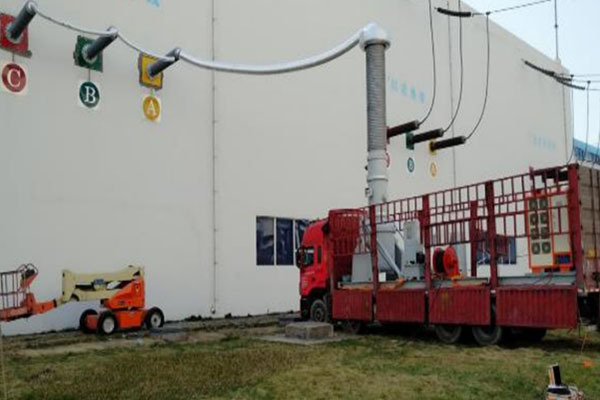

800kV SF6 gas insulated resonant reactor Used in connecting external bushing

Factory description

Shandong Taikai Testing Co., Ltd.Located at the foot of the world-renowned Mount Tai, Shandong Taikai Testing Co., Ltd. is a wholly-owned subsidiary of Taikai Group, established in 2018 with a registered capital of 50 million yuan.The company boasts a fully shielded test hall with a clear height of 24 meters and a 3,600-square-meter fully enclosed cleanroom workshop. As a comprehensive high-tech enterprise, it integrates:Technical R&D，Equipment Manufacturing，Technical Services，Engineering Commissioning，Testing & Inspection.With a focus on innovation and precision, the company serves as a one-stop solution provider in the field of advanced testing and engineering technologies.

Shandong Taikai Testing Co., Ltd. specializes in the R&D and manufacturing of high-voltage testing equipment, including:AC withstand voltage test systems (10kV ~ 1600kV)，Isolation transformers，Transformer error detection devices，Standard capacitors，Research & teaching platforms

With projects spanning Shandong, Jibei, Fujian, Guangdong, Guangxi, Xinjiang, Shaanxi, Inner Mongolia, and other regions across China

Our solutions have been widely deployed in national key demonstration projects such as:West-to-East Power Transmission，Tibet Grid Interconnection，Zhangbei Flexible DC Grid，Consistently recognized by clients for reliability and innovation in power infrastructure development.

Shipping Packaging

In accordance with national standards and the actual transportation requirements of the Buyer, the complete equipment shall be packed in packaging cases suitable for road transportation. The installation manual, certificate of conformity, packing list, and other documents shall be securely packaged to prevent moisture damage.
